  • OTF20 Flake Ice Machine With Copeland Compressor




    Flake Ice Machine products flake ice. The ice is dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.


    OMT 2Ton Flake Ice Machine Back Side With Copeland Compressor

    3-1P51Q54U6495.jpg    3-1P51Q5561I03.jpg

    OMT 2Ton Flake Ice Machine With Ice Storage Bin


    3-1P51Q55I5928.jpg       3-1P51Q60312E7.jpg


    OMT Flake ices. Strong and Dry. Thickness: 1.2~2.2mm

    3-1P51Q61410N6.jpg     3-1P51Q61436328.jpg





    OMT 2ton Flake Ice Machine Technical Parameter:

    Model NumberOTF20
    Machine Capacity(KG/24HRS)2000


    Ice Thickness(MM)1.8~2.2


    Ice Freezing Time(MINUTE)1


    Material of Evaporator DrumStainless Steel 304/Carbon Steel Chrome


    Compressor BrandManeurop/Bitzer


    RefrigerantR404A


    Cooling WayAir Cooled


    Supply Power220V~480V, 50Hz/60Hz, 3P


    Machine
    Power(KW)
    Compressor(HP)7.56.52


    Motor Power(KW)0.37


    Circulating Water Pump(KW)0.15


    Cooling Fan Motor(KW)0.75


    Machinery Unit Size(MM)1770*1120*1220


    Machine Unit Weight(KG)980


    Warranty(MONTHS)12



    OMT Flake Ice Machine Features:

    1) Strong and Durable parts.
    All compressor and refrigerant parts are world first class.

    2) Low energy consumption.
    Energy consumption saving reaches more than 30% compare with traditional equipment.

    3) High quality material.
    The evaporator drum are made of anti-rust and anti-corrosion material--stainless steel 304(316) or carbon steel chrome.

    4)PLC program Logic Controller.
    Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.

    5)Special ice outlet.
    Ice discharge automatically without taking ice by hands, matched with ice packing system to pack the ice with plastic bags.





    OMT 2ton Flake Ice Machine Pictures :

    Machine Side View (Air Cooled Condensor)
    Control BoxBitzer Compressor from Germany

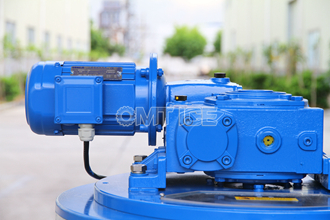

    ReducerEvaporator


    OMT Flake Ice Machine Series:

    ItemCapacity
    (T/24HRS)
    Compressor
    Power(KW)
    Motor Power(KW)Circulating Water Pump(KW)Cooling Water
    Pump(KW)
    Cooling Fan
    Motor(KW)
    Machine Dimension(MM)
    OTF050.51.80.370.15/0.111420*800*1020
    OTF1014.50.370.15/0.221420*840*1080
    OTF2027.50.370.15/0.751770*1120*1220
    OTF30390.370.15/0.751770*1130*1330
    OTF505150.370.152.21.52100*1500*1580
    OTF80822.50.750.441.52400*2200*1850
    OTF10010300.750.441.52800*2200*2020
    OTF150152*301.50.5541.52900*2200*2380
    OTF2002066.50.750.45.52.23600*2200*2500


    ⊙ Refrigerant:R22 or R404a
    ⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator Temp: -20℃; Condensing Temp: 40℃
    ⊙ Model and specifications can be changed without notice.


    Machine Configuration List:


    Component ItemBrand and Origin
    Compressor Danfoss/Manevrop/Bitzer/Bock/Copeland
    PLC controllerLG(LS) South Korea
    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
