OTB60 Ice Block Making Machine---for 600pcs of 10kg ice

OMT 6ton Ice Block Making Machine adopts reasonable and separate design for the structure, save space, easy to install.
The machine starts to work once the water pipes and electricity power are connected, also easy to transport.
It mainly for making10kg and 15kg ice.
For 10kg ice, it makes 150pcs/6hrs and 600pcs/24hrs.
For 15kg ice, it makes 100pcs/8hrs and 400pcs/24hrs.
OMT 6ton Ice Block Making Machine Technical Parameter:
Model | OTB60 |
Machine Capacity | 6000KG/24HRS |
Weight of Ice Block | 10KG/PCS(available for 15KG, 20KG etc.) |
Ice Block Size | 100*205*610MM |
Material | Water Tank | Stainless Steel 304 |
Ice Moulds |
Ice Freezing Time | 150PCS/6HRS |
600PCS/24HRS |
Refrigerant | R22 |
Condenser | Water Cooled(Air Cooled) |
Supply Power | 220V~480V, 50Hz/60Hz, 3P |
Machine Power | Compressor | 25HP | 25.7KW |
Salt Water Pump | 4KW |
Cooling Water Pump | 2.2KW |
Cooling Tower Motor | 0.75KW |
Machinery Unit Dimension | 1870*900*1730MM |
Salt Water Tank Dimension | 3290*2007*1300MM |
Warranty | 12 Months |
Ice Block Making Machine Features:
1) Strong and Durable parts.
All compressor and refrigerant parts are world first class.
2) Low energy consumption.
Energy consumption saves up to 30% compare with traditional equipment.
3) Low maintenance, stable performance.
4) High quality material.
The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.
5) Sophisticated heat insulation technology.
The ice making tank adopts high density Polyurethane foam for perfect heat insulation.
OMT 6ton Ice Block Making Machine Pictures:

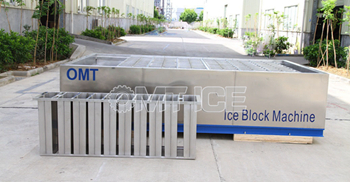

Machine Whole View | Machine Electrical Control Box |
 |  |
The Machine Unit (Using Germany Bitzer Compressor) |
 |  |
Salt Water Tank (Made by High Quality Stainless Steel 304) |
 |  |
Ice Moulds (Made by High Quality Stainless Steel 304) |
 |  |
5kg Block Ice (Strong and hard) | 10kg Block Ice (Strong and hard) |
 |  |
OMT Ice Block Making Machine Series:
Items
| Capacity
(T/DAY) | Compressor
Power(HP) | Salt Water
Pump(KW) | Cooling Water
Pump(KW) | Cooling Tower
Motor(KW) | Machinery Unit Dimensions(MM) | Salt Water Tank
Dimensions(MM) |
OTB10 | 1 | 4 | 1.1 | / | 0.18 | 2640*1500*1120 |
OTB20 | 2 | 9 | 1.5 | 1.1 | 0.37 | 1560*790*1520 | 2450*1010*960 |
OTB30 | 3 | 14 | 2.2 | 1.5 | 0.55 | 1570*780*1520 | 2550*1320*1100 |
OTB40 | 4 | 20 | 3 | 1.5 | 0.55 | 1870*870*1700 | 2850*1600*1100 |
OTB50 | 5 | 25 | 4 | 2.2 | 0.75 | 1870*870*1730 | 3600*1450*1200 |
OTB60 | 6 | 25 | 4 | 2.2 | 0.75 | 1870*900*1730 | 3290*2007*1300 |
OTB80 | 8 | 40 | 5.5 | 4 | 1.5 | 2080*960*1750 | 5250*1620*1170 |
OTB100 | 10 | 50 | 5.5 | 4 | 1.5 | 2360*1060*1800 | 6080*1700*1130 |
OTB150 | 15 | 2*40 | 7.5 | 5.5 | 1.5 | 2670*1510*1710 | 7000*2000*1130 |
OTB200 | 20 | 3*30 | 11 | 5.5 | 1.5 | 2470*1350*1950 | 9985*2007*1500 |
*Refrigerant: R22;
*Supply Power: 220V~480V, 50Hz/60Hz, 3P;
*Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled(Air cooled);
*Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;
(Note: The actual ice production will be changed with input water temp and ambient temp.)
*We will suggest if crane system is needed based on your requirement;
*Model and specifications can be subject to change without notice.
Machine Configuration List:
Component Item | Brand and Origin |
Compressor | Danfoss/Bitzer/Bock/Copeland |
PLC controller | Siemens/ Germany |
Oil separator | EMERSON/ USA |
Electrical components | LG (LS)/South Korea |
Solenoid valve | CASTAL/Italy |
High pressure controller | DANFOSS/ Denmark |
Low pressure controller | DANFOSS/ Denmark |
Expansion valve | CASTAL/Italy |
Condenser | Jianguo/Xuemei |
Evaporator | OMEX/Guangzhou |
