  • OMT OTF05 500kg Flake Ice Making Machine


    OMT Flake Ice Making Machine produces flake ice with the capacity ranging from 500kg/24hrs to 20ton/24hrs with rapid cooling speed, which emplys the highest imported quality components and non-corrosive materials. The ice freezing time of this machine is 1 minute and ice thickness can be 1.8mm to 2mm.

    OMT 500kg Fresh Water Flake Ice Machine Unit Air Cooling Front View


    OMT 500kg Fresh Water Flake Ice Machine Unit  Back View


    OMT 500kg Fresh Water Flake Ice Machine Unit  Side View


    OMT 500kg Fresh Water Flake Ice Machine With Ice Storage Bin


    OMT 500kg Fresh Water Flake Ice Machine With Ice Storage Bin



    OMT 500kg Flake Ice Making Machine Technical Parameter:


    Model NumberOTF05
    Machine Capacity(KG/24HRS)500
    Ice Thickness(MM)1.8~2.2
    Ice Freezing Time(MINUTE)                1
    Material of Evaporator DrumStainless Steel 304/Carbon Steel Chrome
    Compressor BrandDanfoss
    RefrigerantR404A
    Cooling WayAir Cooled
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine
    Power(KW)
    Compressor(HP)1.81.89
    Motor Power(KW)0.37
    Circulating Water Pump(KW)     0.15
    Cooling Water Pump(KW)/
    Cooling Fan Motor(KW)0.11
    Machinery Unit Size(MM)1420*800*1020
    Machine Unit Weight(KG)500
    Warranty(MONTHS)12



    OMT Flake Ice Making Machine Features:

    1) Strong and Durable parts.
    All compressor and refrigerant parts are world first class.

    2) Low energy consumption.
    Energy consumption saving reaches more than 30% compare with traditional equipment.

    3) High quality material.
    The evaporator drum are made of anti-rust and anti-corrosion material--stainless steel 304(316) or carbon steel chrome.

    4)PLC program Logic Controller.
    Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connected with automatic ice packing machine or  convery belt.

    5)Special ice outlet.
    Ice discharge automatically without taking ice by hands, matched with ice packing system to pack the ice with plas


    OMT 500kg Flake Ice Making Machine Pictures :

    Machine Front ViewMachine Side View

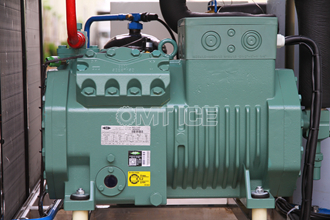

    Control BoxBitzer Compressor from Germany
    ReducerEvaporator
    Flake Ice: Dry, pure, powder-less, not easy to be block


    OMT Flake Ice Making Machine Series:

    ItemCapacity
    (T/24HRS)
    Compressor
    Power(KW)
    Motor Power(KW)Circulating Water Pump(KW)Cooling Water
    Pump(KW)
    Cooling Fan
    Motor(KW)
    Machine Dimension(MM)
    OTF050.51.80.370.15/0.111420*800*1020
    OTF1014.50.370.15/0.221420*840*1080
    OTF2027.50.370.15/0.751770*1120*1220
    OTF30390.370.15/0.751770*1130*1330
    OTF505150.370.152.21.52100*1500*1580
    OTF80822.50.750.441.52400*2200*1850
    OTF10010300.750.441.52800*2200*2020
    OTF150152*301.50.5541.52900*2200*2380
    OTF2002066.50.750.45.52.23600*2200*2500

    ⊙ Refrigerant:R22 or R404a
    ⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator Temp: -20℃; Condensing Temp: 40℃
    ⊙ Model and specifications can be changed without notice.


    Machine Configuration List:

    Component ItemBrand and Origin
    Compressor Danfoss/Manevrop/Bitzer/Bock
    PLC controller

    Siemens/ Germany

    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
